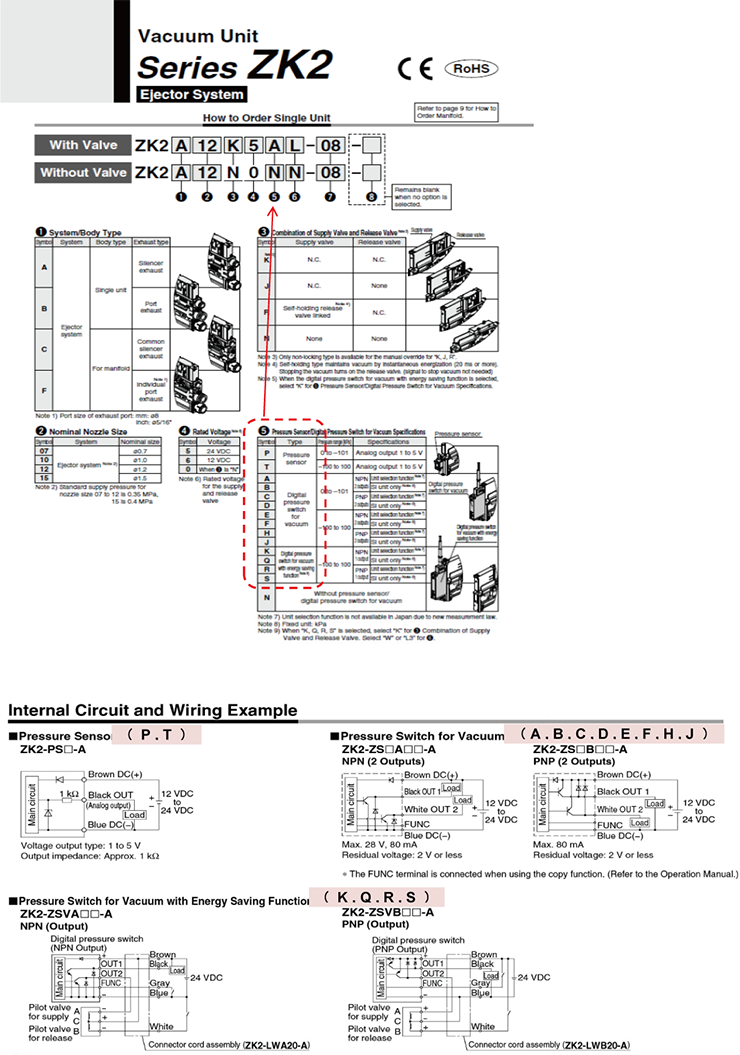

I want to know how to wire the supply valve and the release valve of the ZK2 series.

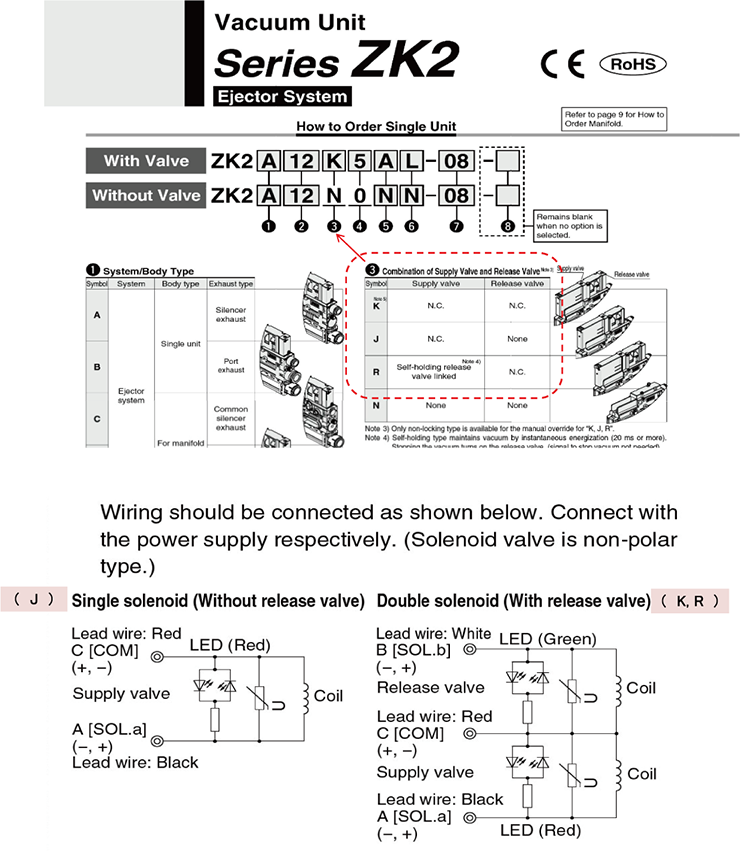

The red lead wire is COM, the white lead wire is release valve B, and the black lead wire is supply valve A. There is no polarity, so you can use either +COM or –COM.
